ARRI | Alexa Mini LF
Camera: ARRI Alexa Mini LF

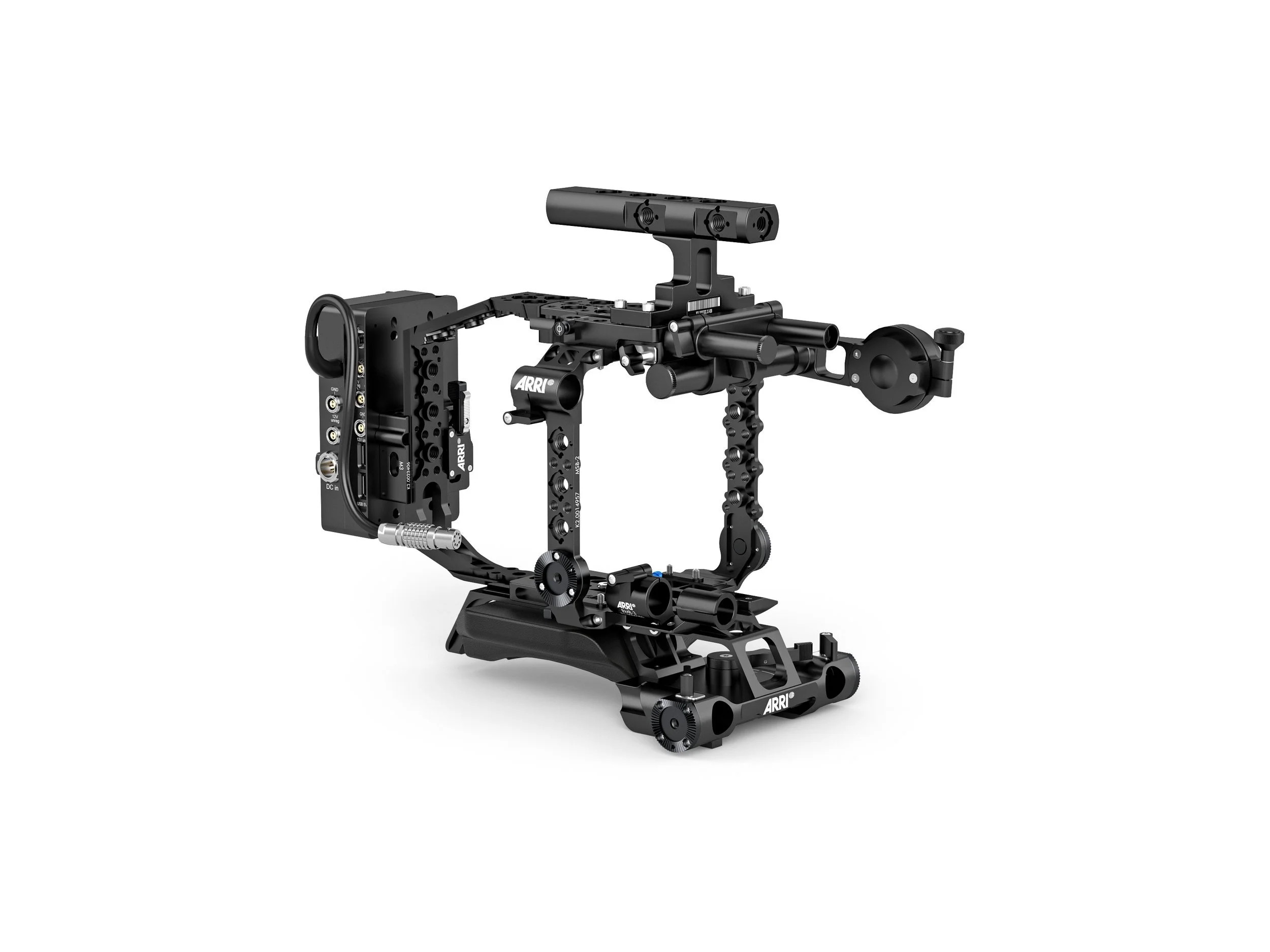

ARRI Alexa Mini LF package:
[ ¥150,000 / day ] + tax
Package Includes:
[1] ARRI ALEXA Mini LF Body
[1] Bebob Battery Plate
[1] ARRI AC Power Supply
[1] ARRI ALEXA LPL Mount
[1] ARRI ALEXA LPL to PL Mount
[1] Wooden Camera A-Box
[1] ARRI MVF-2
[1] ARRI EVF Mount
[1] ARRI EVF Mount Bracket
[1] ARRI MVF-2 Cable 0.5M
[1] ARRI MVF-2 Cable 0.35M
[1] ARRI CCH-2 Center Camera Handle
[1] ARRI HEX-4 Handle Extension
[1] ARRI MAP-2A Mini Adapter Plate
[1] ARRI RAB-1 Rear Accessory Bracket
[1] ARRI RAB-1 Clamp 2
[1] ARRI CBP-1 Compact Bridge Plate - 19mm
[1] ARRI CBP-1 Cage Bottom Plate
[1] ARRI RMB-3 Rod Mounting Bracket
[2] ARRI MSB-1 / MSB-3 Mini Side Bracket
[1] ARRI Bottom Dovetail Plate (12" / 300mm)
[2] 15mm Rod - 6"
[2] 19mm Rod - 9"
[2] 19mm Rod - 18"
[1] Antenna - Standard
[1] USB-A to USB-C Cable
Extras:
- 1TB Codex Drives - [ ¥15,000 / day ] + tax
- Codex Compact Drive Reader - [ ¥6,000 / day ] + tax
ARRI Alexa Mini LF package includes all basic aks.
Vertical Cage and other accessories available.
4.5k Large Format Sensor (4.5K Open Gate ARRIRAW/Prores)
Please inquire with any requests.
| Specifications | |
|---|---|
| Sensor | LF sensor 36.7 x 25.54 mm (image circle 44.71φmm) |
| Mount | LPL Mount (PL Mount Adapter Included) |
| Shutter | Electronic Rolling Shutter 5.0～356.0° |
| Dimensions | (W)140 x (H)143 x (L)188mm |
| Weight (Body Only) | ~2.6kg |
| Power Input | DC11.5～34V |
| Base Sensitivity (EI) | EI800 |
| Media | CODEX Compact Drive（ARRI RAW/ProRes） |
| Recording Format | |||
|---|---|---|---|
| Sensor Mode | Sensor Size | Resolution | Maximum Frame Rate Compact Drive 1TB |
| LF Open Gate | 36.7×25.54mm φ44.71mm | 4448×3096 | ARRIRAW 40fps ProRes 40fps |
| LF 16:9 | 31.68×17.82mm 36.35φmm | 3840×2160 | ARRIRAW 60fps ProRes 60fps |
| LF 2.39:1 | 36.7×15.31mm 39.76φmm | 4448×1856 | ARRIRAW 60fps ProRes 60fps |
| 2K 16:9 | 31.68×17.82mm 36.35φmm | 2048×2160 | ProRes 90fps |
| HD 16:9 | 31.68×17.82mm 36.35φmm | 1920×1080 | ProRes 90fps |
